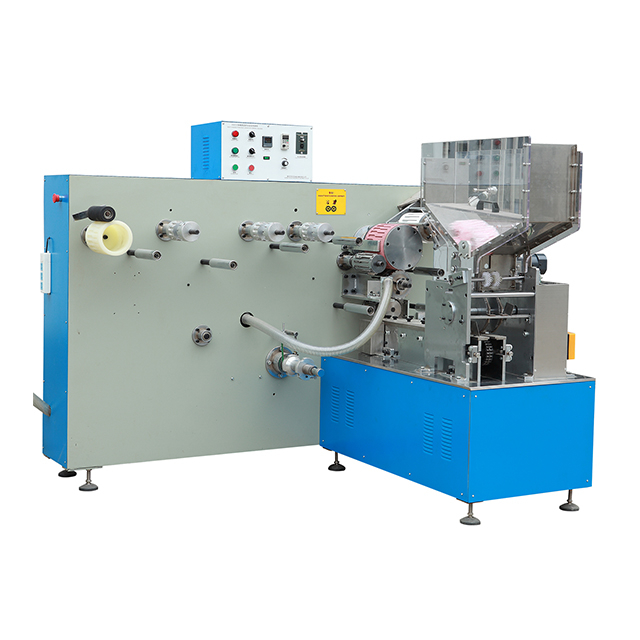

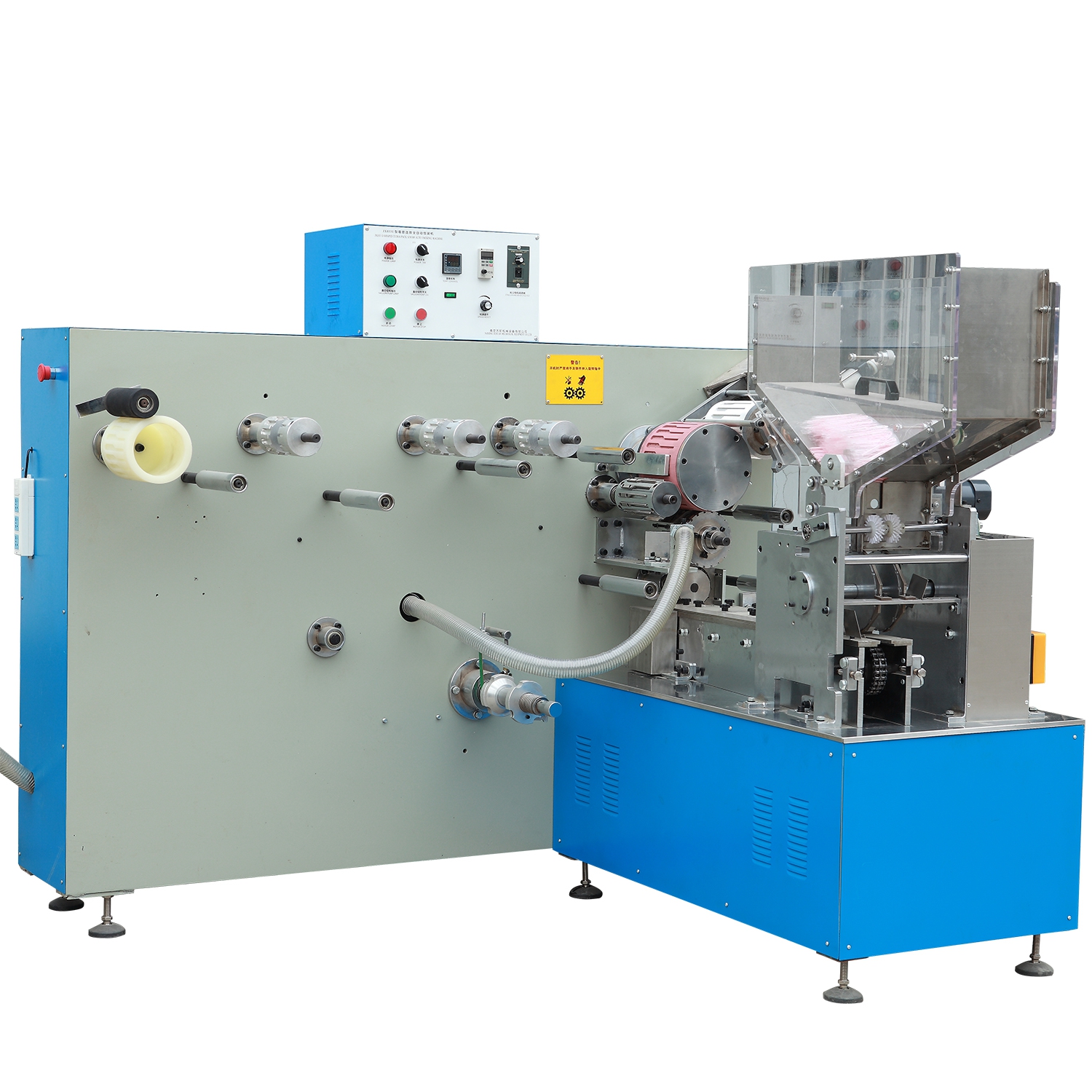

SS033 U-shape straws auto packing

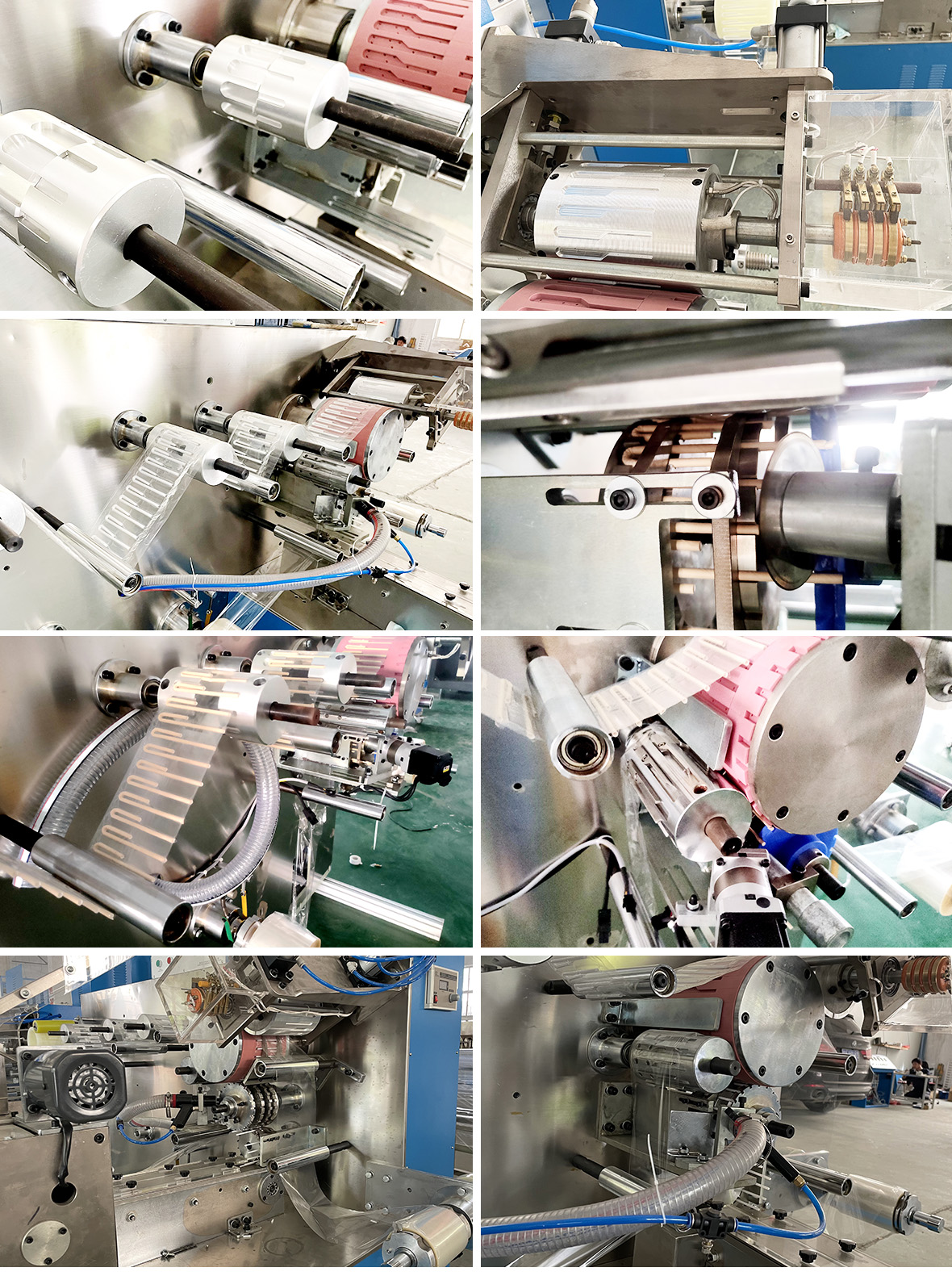

This SS033 machine can bend flexible drink straws into U-shape and automatically pack them into bags.The complete machine is composed of a driving motor, thin film rolling device(2 groups), a driven system, an unloading device, a straw filling device, a sealing device, a restoring substandard products device and others.The machine boasts easy operation and reliable quality. It is mainly used as the auxiliary equipment for sterile packed drinks such as BOX packing.
CHARACTERISTICS
◆Packing of single tetra straws and the completion of bending, filling and packing of straws at a time
◆Automatic counting and batch alarm
◆Adjustable packing speed
Driving Motor | 2.2kw（control by frequency converter) | |
Production Capacity | 300~500pcs/min | |
Packing method | four sides sealing | |
Specifications of the packing film | Material | can be hot sealed such as Bopp |
Shape | Roll | |
Roll diamtere
| Max:280mm | |
Internal diameter of paper tubes | 76mm | |
Width of film | Max:180mm | |
Thickness of film | 20μ-30μ | |
Packing shape | 22mm(pitch)× 100~140mm(wide) | |
Straws specifications | In-diameter | Ø 3.8mm Ø 4.8mm |
Thickness | 0.19~0.25mm | |
Length of U-shape model | 90mm(smaill type)\105mm(middle type)、128mm(big type) | |
Other specifications are Customizable | ||
Machine size(L×W×H) | 2200 × 1800×1700mm | |
Machine weight | 1000kg | |
