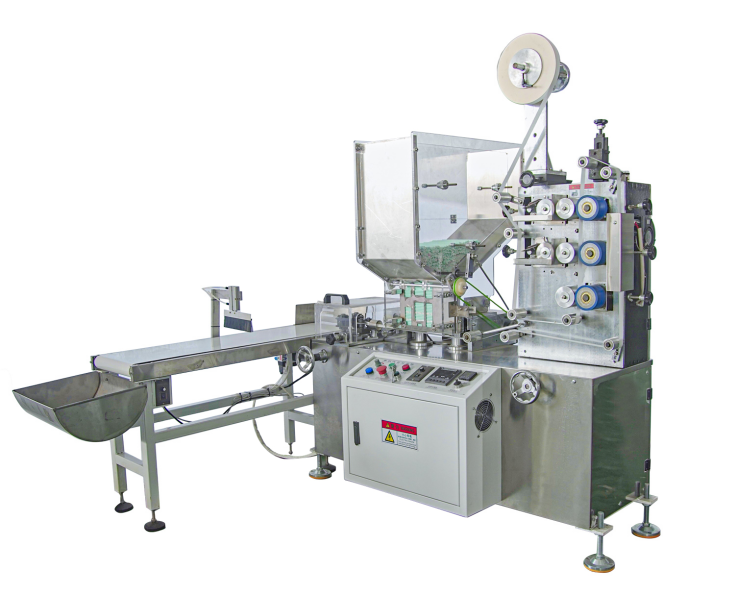

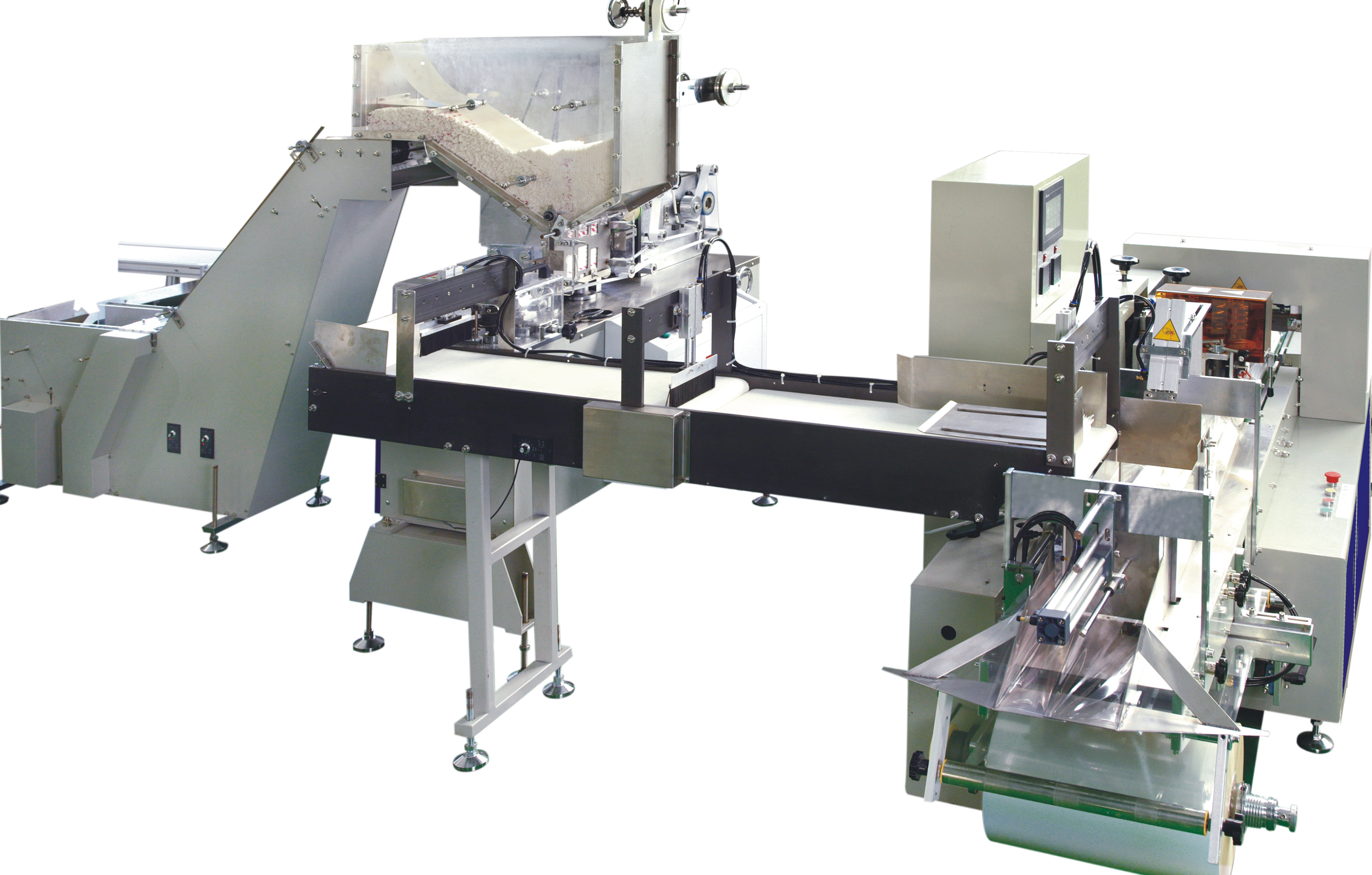

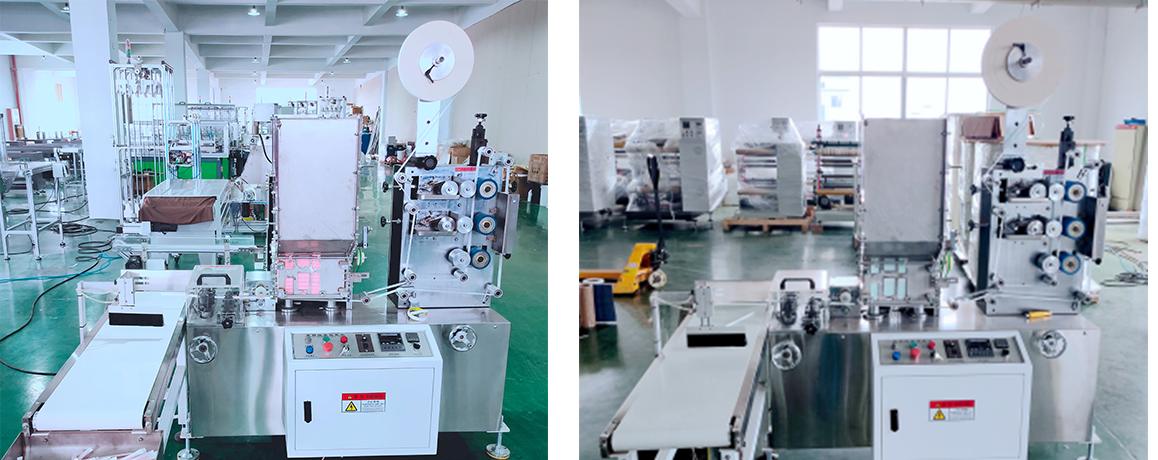

Single with Multiple straw packing machine

Suitable straw outer diameter

5-12mm

Straw length(mm)

170-250mm

according to required of client

Package size

Paper/BOOP film,3 sides sealing width 25mm-30mm

Real production speed

With printing:250pcs/min

Without printing:300-400pcs/min

Controller

Counter and buzzers:1set

Inverter: 1.1KW, Schneider

Temperature controller:1set

Speed meter:1set

Total power（Kw）

1.5Kw(220V)

Dimension

(L×W×H)1900×1000×1600mm

Weight

450kg

Feeding speed

600-1200pcs/min

raw materials

steel

Conveyor Straw Mould

Nylon

Motor Power

120w and 250w

size

1200mmx60mmx1600mm

weight

120kg

Film thickness

0.02-0.06mm

Packing speed

1500 pcs/min

Straw Diameter

5-12 mm(The number of packaging straws is determined according to the thickness of the straw and the model)

Packing line dimensions

3000mm*1300mm*1300mm

Power

3.0kw

Weight

800kg

PLC

DVP32ES2

1

TAIWAN DELTA

Screen

DOP-107BV

1

TAIWAN DELTA

Air switch

DZ47-60-3PC20

1

ZHENGTAI

Air switch

DZ47-60-2PC10

1

ZHENGTAI

Air switch

DZ47-60-1PC10

3

ZHENGTAI

Servo drive

ASD-A2-1021-L

1

TAIWAN DELTA

Servo drive

ASD-A2-0421-L

1

TAIWAN DELTA

Servo drive

0.4KW

1

TAIWAN DELTA

Servo drive

1KW

1

TAIWAN DELTA

Adjust speed motor

100YT200GV22（1：10）

1

JINGYAN

Cylinder

9

JIAERLING

Temperature meter

2

YATAI

Magnetic valve

9

ARTAC

Solid

DC5-32V

2

DONGQI

Crystal Valve

ZH-8YR-A

1

ZHENHONG

Relay

ZH-5YR-A

1

ZHENHONG

AC

CJX2-1810

1

ZHENGTAI

Power

PMC24V50W1AA

1

DELTA
