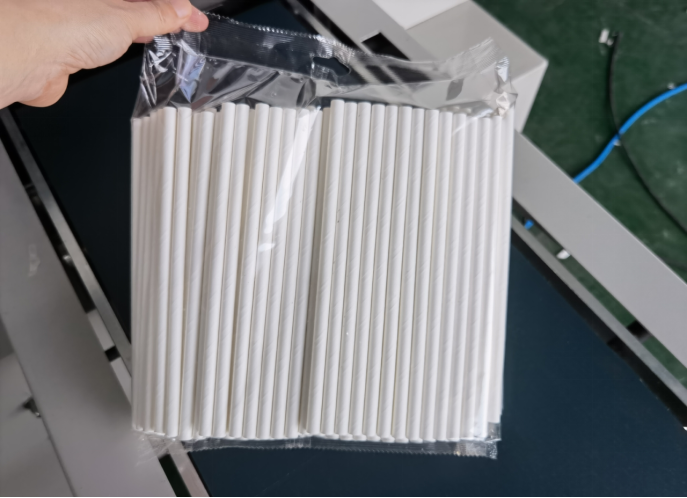

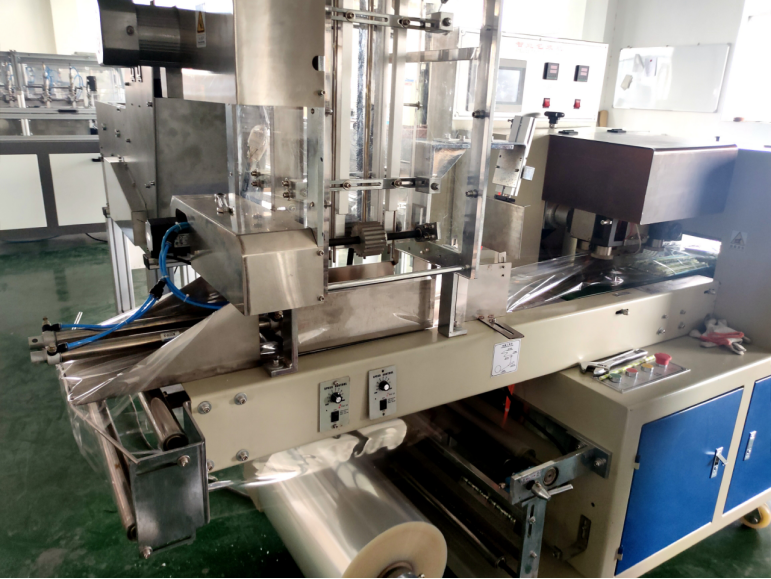

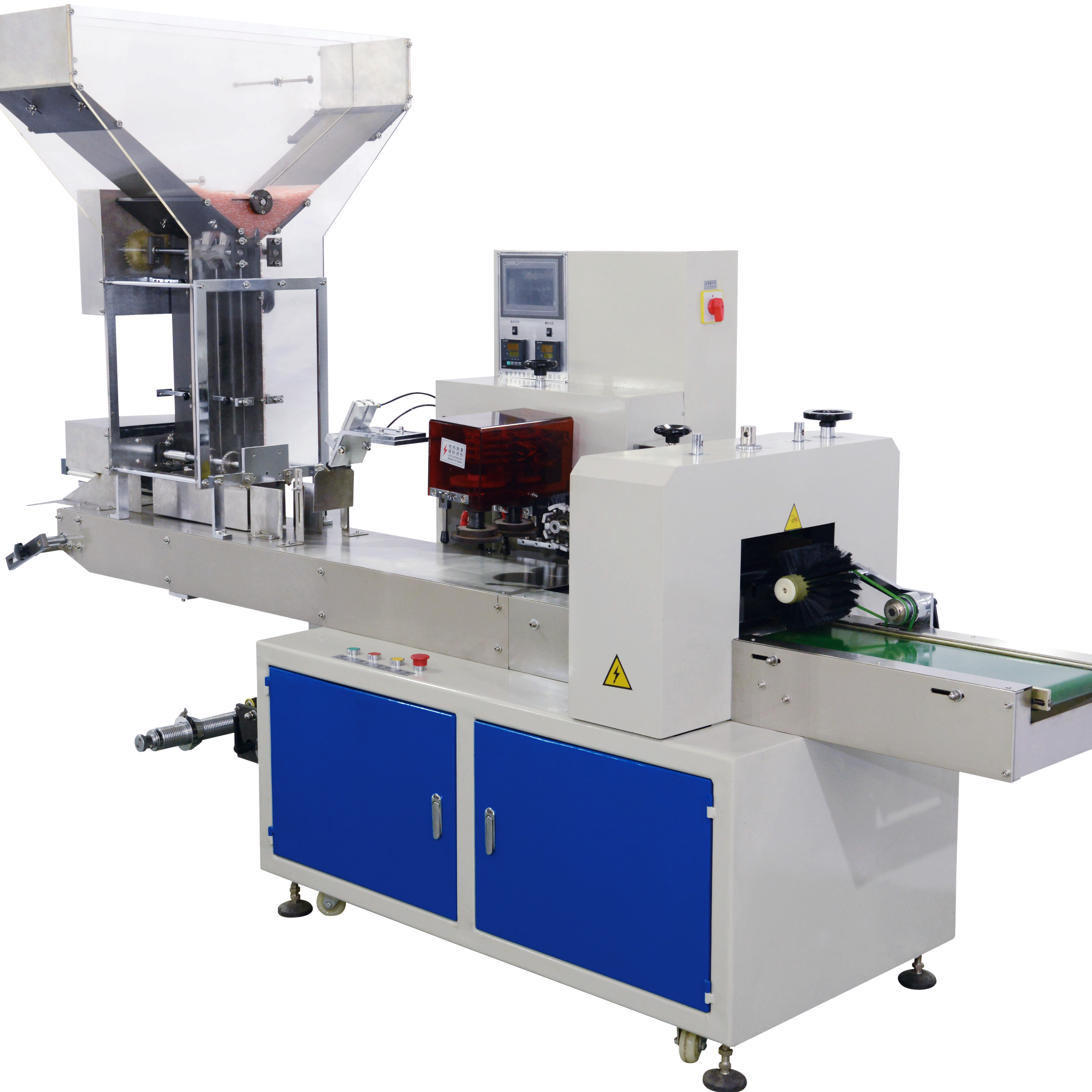

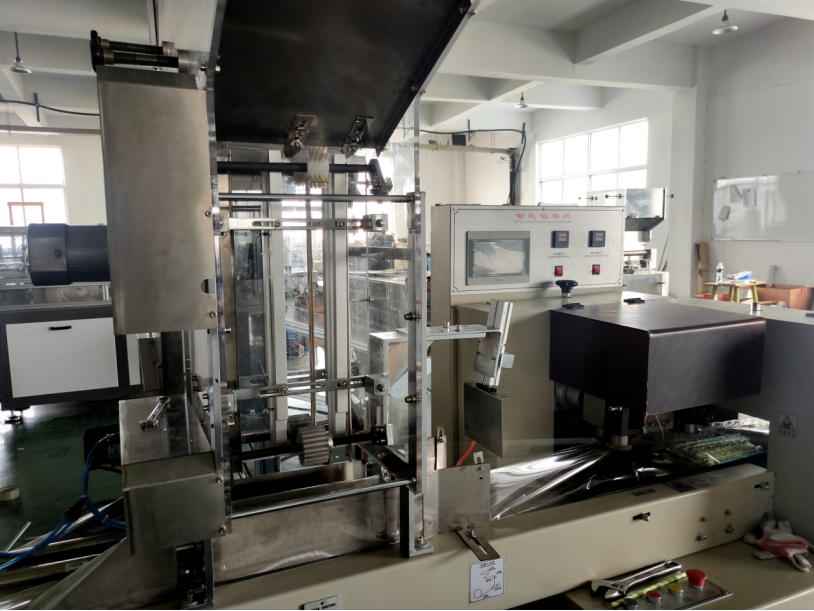

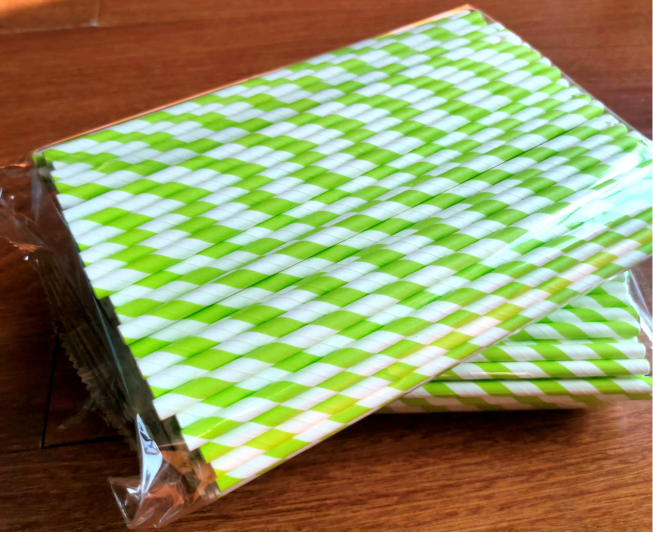

Multiple Straw Packing Machine (naked straw)

Film thickness

0.02-0.06mm

counting range

even numbers

lenght range

150mm to 280mm

Straw Diameter

5-12 mm

Packing line dimensions

3000mm*1300mm*1300mm

poly bag material

PP or LD

Power

3.0kw

Weight

800kg

PLC

DVP32ES2

1

TAIWAN DELTA

Screen

DOP-107BV

1

TAIWAN DELTA

Air switch

DZ47-60-3PC20

1

ZHENGTAI

Air switch

DZ47-60-2PC10

1

ZHENGTAI

Air switch

DZ47-60-1PC10

3

ZHENGTAI

Servo drive

ASD-A2-1021-L

1

TAIWAN DELTA

Servo drive

ASD-A2-0421-L

1

TAIWAN DELTA

Servo drive

0.4KW

1

TAIWAN DELTA

Servo drive

1KW

1

TAIWAN DELTA

Adjust speed motor

100YT200GV22（1：10）

1

JINGYAN

Cylinder

9

JIAERLING

Temperature meter

2

YATAI

Magnetic valve

9

ARTAC

Solid

DC5-32V

2

DONGQI

Crystal Valve

ZH-8YR-A

1

ZHENHONG

Relay

ZH-5YR-A

1

ZHENHONG

AC

CJX2-1810

1

ZHENGTAI

Power

PMC24V50W1AA

1

DELTA
